Gestion de la propagation des modifications à travers des documents méthodes

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Soufi, Khaled (2006). Gestion de la propagation des modifications à travers des documents méthodes. Mémoire de maîtrise électronique, Montréal, École de technologie supérieure.

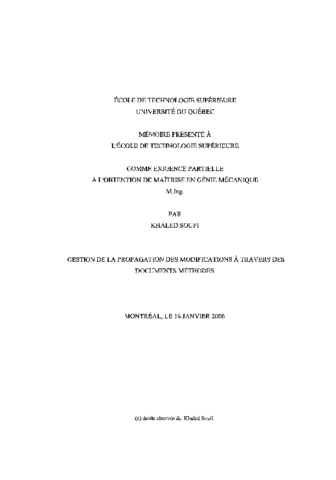

[thumbnail of SOUFI_Khaled.pdf]
Prévisualisation
PDF
Télécharger (2MB) | Prévisualisation

Résumé

Les systèmes de gestion du cycle de vie d'un produit (Product Life Cycle Management PLM) gèrent les informations relatives à la définition d'un produit. En particulier, ils permettent de gérer les liens entre les documents définissant la géométrie, le processus d'usinage et le processus d'inspection d'un produit. Si l'un de ces documents est modifié, les systèmes PLM permettent de visualiser les documents qui pourront être impactés par cette modification. Cependant, ces systèmes ne permettent pas de localiser les modifications dans les documents suite à un changement survenu dans un modèle de CFAO. Ce rapport présente un modèle pour gérer la propagation de ces modifications. La maîtrise de la propagation des modifications passe nécessairement par la communication entre les applications. D'où l'idée de créer des «entités parlante» au sein des documents et de créer des liens entre elles. Ces entités parlantes, lorsque modifiées, assurent la notification des autres entités.

Titre traduit

Change management and propagation system throughout engineering documents

Résumé traduit

The Product Life Cycle Management (PLM) systems manage information related to the product definition. Especially, they manage links between documents defining the geometry, the machining process and the inspection process of a product. If one of these documents is modified, PLM systems can visualize the documents which could be impacted by this modification. However, these systems can't locate exactly the changes inside the documents following a change which has occurred in a Computer Aided Design (CAD) model.

This report presents the study of the engineering change propagation throughout engineering documents. The study relates to the improvement of engineering change propagation during the product life cycle. When an engineering document is changed, it is important to determine with precision the other documents impacted by this change. The product definition during all its life cycle is ensured by data-processing applications. The change management control has to go through a better communication between these applications at very detailed level. The idea, than, is to create "smart entities" within the engineering documents and to create links between them. These smart entities, when modified, ensure the notification of the other entities.

The study proposes to establish a central change propagation management module. The various applications participating into the product definition are integrated into this module. If an entity is modified, it informs the central module which, thanks to a links database, will simulate the impact of this modification on the other entities contained in various documents. This module also allows the change propagation execution. This model will be used to mitigate the lack of functionalities of the commercial PLM systems.

A prototype was developed in order to prove the feasibility of the proposed model. The results are promising. Change notifications are sent by the CAD/CAM system. These notifications are treated and the propagation diagram established showing, with precision, the other entities impacted. The change propagation process can be automated according to pre-established rules.

Type de document: Mémoire ou thèse (Mémoire de maîtrise électronique)
Renseignements supplémentaires: "Mémoire présenté à l'École de technologie supérieure comme exigence partielle à l'obtention de la maîtrise en génie mécanique". Bibliogr.: f. [57]-59. Chap. 1. Problématique -- Chap. 2. Revue de littérature -- Chap. 3. Modèle de gestion de la propagation des modifications -- Chap. 4. Le prototype de validation -- Chap. 5. Discussion.
Mots-clés libres: Cfao, Cycle, Document, Gestion, Methode, Modele, Modification, Plm, Produit, Propagation, Prototype, Systeme, Validation, Vie
Directeur de mémoire/thèse:
Directeur de mémoire/thèse
Chatelain, Jean-François
Codirecteur:
Codirecteur
Maranzana, Roland
Programme: Maîtrise en ingénierie > Génie mécanique
Date de dépôt: 24 mars 2011 20:54
Dernière modification: 04 nov. 2016 21:19
URI: https://espace.etsmtl.ca/id/eprint/475
