Récepteur hybride GPS/GALILÉO : simulation et analyse de robustesse avec le filtre FADP

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Ilie, Iurie (2004). Récepteur hybride GPS/GALILÉO : simulation et analyse de robustesse avec le filtre FADP. Mémoire de maîtrise électronique, Montréal, École de technologie supérieure.

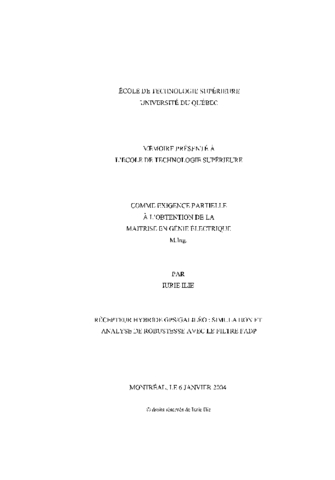

[thumbnail of ILIE_Iurie.pdf]
Prévisualisation
PDF
Télécharger (6MB) | Prévisualisation

Résumé

Dans le cadre de ce travail, nous avons fait une toute première étude sur la conception d'une architecture hybride du récepteur GPS/Galiléo et une première analyse quant à la robustesse potentielle de celui-ci dans un environnement bruité.

Les résultats de recherche ont démontré que la conception du récepteur en question est préférable dans la bande E2-L1-E1 où les deux systèmes utilisent la même fréquence porteuse et où se trouvent les signaux civils C/A du GPS et BOC(2,2) du système Galiléo. De plus, il était constaté que dans la bande mentionnée, il est possible d'adapter les architectures conventionnelles utilisées dans le cas du GPS au traitement du signal BOC(2,2) en simplifiant ainsi l'architecture du récepteur hybride.

Les résultats de ce travail tout comme l'expertise acquise sont utilisés actuellement pour l'implémentation temps réel du récepteur en utilisant le concept SDN ( Software Defined Navigator ).

Titre traduit

Hybride GPS/Galileo receiver: simulation and robutness analysis with FADP filter

Résumé traduit

Within the framework of this work, we made a very first study on the design of hybrid architecture for the GPS/Galileo receiver and one of the first analysis of the robustness potential of the receiver in ajamming environment.

The research results shown that the design of the receiver in question is preferable in E2-Ll-El band where two systems use the same carrier frequency and where we find C/A and BOC(2,2) civil signals. Moreover, it was noted that in this band, it is possible to adapt the conventional architectures used in the case of the GPS to the treatment of the BOC(2,2) signal by slightly modifying the receiver architecture.

To achieve the analysis, a digital GPS/Galileo communication channel was simulated in Matlab/Simulink using the fundamental concepts of pseudo-random signals treatment for the GPS.FADP (Amplitude Domain Processing in Frequency Field) filter was then added in order to study its contribution to the robustness improvement of the whole hybrid receiver in the presence of the multiple jammers.

The simulation results shown that the treatment of the new BOC(2,2) signal is possible with no significant changes of conventional DLL (Delay Locked Loop ). The coherent treatment of the new BOC(2,2) signal is possible without increasing as much the number of the correlators compared to C/A signal and without 1osing precision. 0n the other hand, it was also shown that in the case of the non- coherent treatment in DLL, the BOC(2,2) signal requires at lest two additional correlators. The robustness analysis of the hybrid receiver showed that its threshold of stability is better than 6.1 dB in DLL and to 3 dB in PLL (Phase Locked Loop). FADP filter ensures an important improvement of the signal to noise ratio, which, in the case of ten CWI (Carrier Wave Interference)jammers can reach 27 dB.

The results of this work as the acquired expertise are currently used for real time implementation of the receiver by using SDN (Software Defined Navigator) concept.

Type de document: Mémoire ou thèse (Mémoire de maîtrise électronique)
Renseignements supplémentaires: "Mémoire présenté à l'École de technologie supérieure comme exigence partielle à l'obtention de la maîtrise en génie électrique". Bibliogr. : f. [195]-198.
Mots-clés libres: Analyse, Architecture, Bruite, Chaine, Environnement, FADP, Filtre, Galileo, GPS, GPS/Galileo, Hybride, Interference, Recepteur, Robustesse, Simulation
Directeur de mémoire/thèse:
Directeur de mémoire/thèse
Landry, René Jr.
Programme: Maîtrise en ingénierie > Génie électrique
